Uni Tube Armored Fiber Optic Cable Non Armored Water Blocking Friendly Installation

Name: Uni Tube Armored Fiber Optic Cable Non Armored Water Blocking Friendly Installation
Brand: SINOHONE
Price: 1 USD

China Uni Tube Armored Fiber Optic Cable Non Armored Water Blocking Friendly Installation wholesale

Brand Name : SINOHONE

Model Number : GYXY

Certification : CPR FCC CE RoHS ISO9001

Place of Origin : Sichuan, China

MOQ : 2000 meters

Price : USD $0.38~$0.58 / meter

Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram

Supply Ability : 500000 meters per month

Delivery Time : 5-8 work days

Packaging Details : Standard packing in sealed box or according to customers' requirements

Product Name : GYXY Unitube Outdoor Optic Cable

Tube : Loose tube

Fibers : 250um

Tube Materials : High Modules plastic

Filler : Water-blocking

Sheath material : PE

Strength member : Two steel wire

Contact Now

GYXY Uni-tube Outdoor Fiber Optic Cable Non-Armored Optical Fiber Cable

Description

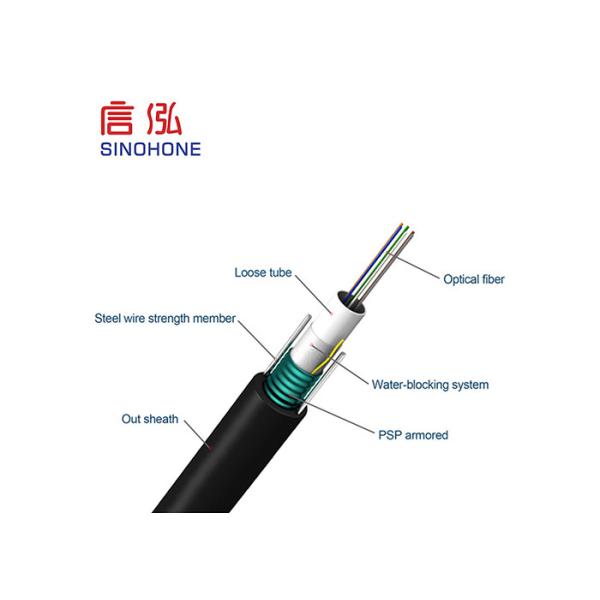

The fibers, 250m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

Characteristics

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Two parallel steel wires ensure tensile strength
PE sheath protects cable from ultraviolet radiation
Small diameter, light weight and friendly installation
Long delivery length

		G.652	G.655	50/125m	62.5/125m
Attenuation(+20 degree)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHzkm	≥200 MHzkm
Bandwidth (Class A)	@1300nm			≥1000 MHzkm	≥600 MHzkm
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength cc		≤1260nm	≤1480nm
